RUD special pins
The special RUD pins offers the perfect connection of chains and load-handling equipment. Thanks to the optimum contact
surface between chain and load-handling equipment, it guarantees perfect transmission of the forces and safe handling.
Advantages and special features at a glance:
- Perfect connection between chain and hook guaranteed

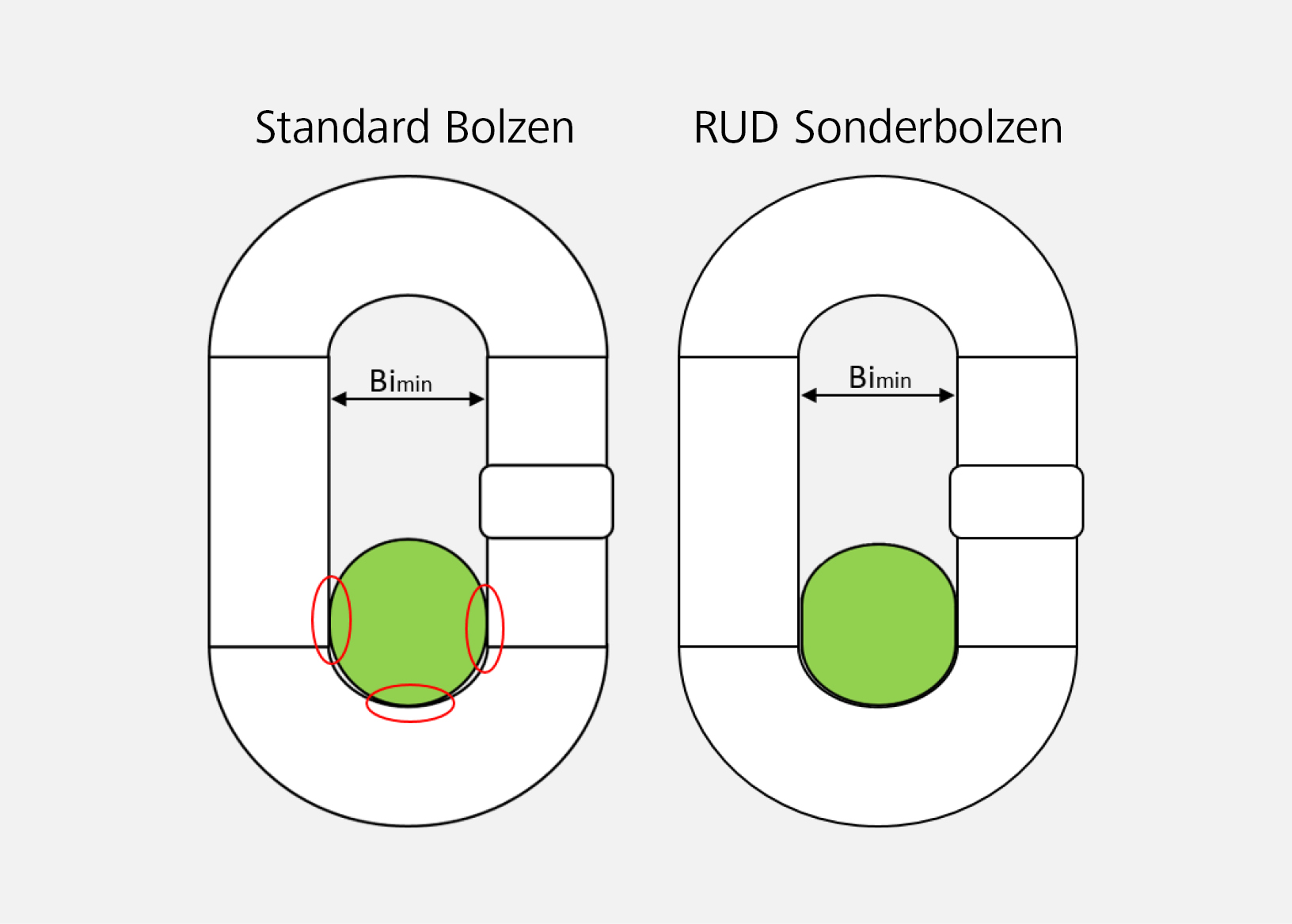

- Flattened sides permit optimal fit with largest possible contact surface
- Standard regulates the selection of the optimum bolt
Technical data of the RUD special bolts.
| Designation | Part no. | σ | For H chain |
|---|---|---|---|
| G bolt 4 special 4.8 (4.1) x 12 | 7990511 | 4.8h11 | 3.6 x 10.6 |
| G bolt 6 special 7.4 (5.5) x 18 | 55622 | 7.4h11 | 5 x 15 |
| G bolt 6 special 7.4 (7.0) x 18 | 7996545 | 7.4h11 | 6 x 18 |
| G bolt 8 special 9.6 (7.8) x 25 | 55625 | 9.6h11 | 7 x 21 |
| G bolt 8 special 9.6 (8.8) x 25 | 55627 | 9.6h11 | 8 x 24 |
| G bolt 10 special 12.1 (10.4) x 30 | 7992632 | 12.1h11 | 9 x 27 |
| G bolt 10 special 12.1 (11.5) x 30 | 55630 | 12.1h11 | 10 x 28 10 x 30 |
| G bolt 13 special 15.6 (14.6) x 41 | 52655 | 15.6h11 | 13 x 36 |
| G bolt 16 special 19 (17.8) x 49 | 52661 | 19.0h11 | 16 x 45 |
| G bolt 22 special 27.5 (26) x 69 | 7990559 | 27.5h11 | 22 x 66 23.5 x 66 |
